Vacuum pump head 200CFM 1140RPM "FLOOD" CCW (Parts)

Tête seule pompe vacuum CCW 1054HRF 1054FTS 200CFM "FLOOD" (Pièces) - Airablo

Vacuum pump head 200CFM 1140RPM "FLOOD" CCW (Parts)

$3,412⁵⁰
Save $0⁰⁰

Quantity

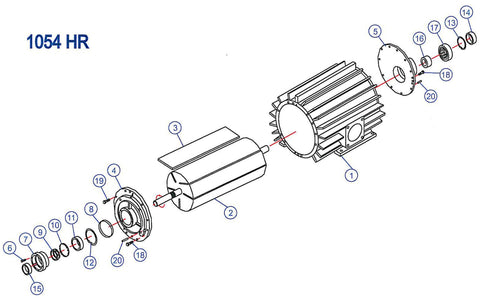

Parts for model: 1054FTS 1054HRF

1 HOUSING (SERIES 1050) # 1050005 # 1050-005
2 ROTOR 1050HR CW # 1050007 # 1050-007
3 VANE (1050 SERIES) # 1050010 # 1050-010
4 ENDPLATE (FRONT) # 1050008 # 1050-008
5 ENDPLATE (REAR) # 1050009 # 1050-009
6 CAP SCREW # 1000001 # 1000-001
7 BEARING CAP # 1500016 # 1500-016
8 SPACER RING # 1500017 # 1500-017
9 LOCKNUT # 1500015 # 1500-015
10 LOCKWASHER # 1500014 # 1500-014
11 BALL BEARING # 1500013 # 1500-013
12 RETAINING RING # 1500012 # 1500-012
13 RETAINING RING EXTERNAL # 1500011 # 1500-011
14 OIL SEAL REAR # 1500009 # 1500-009
15 JOIL SEAL FRONT # 1500007 # 1500-007
16 BEARING RACE # 1500006 # 1500-006
17 ROLLER BEARING # 1500005 # 1500-005
18 CAP SCREW # 1000417 # 1000-417
19 CAP SCREW # 1000409 # 1000-409
20 TAPER PIN # 1000397 # 1000-397
All parts are sold separatly and all prices are per unit

Exploded view (PDF) 1054FTS 1054HRF
