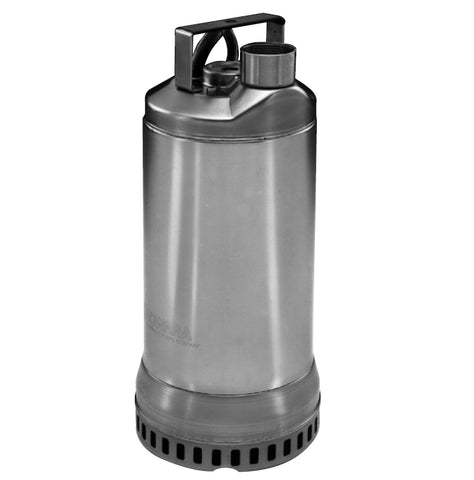

1DW SUBMERSIBLE DEWATERING PUMP

$2,475⁰⁰
Save $0⁰⁰

FEATURES
Impeller: AISI 304 SS open impeller
Diffuser Plate: AISI 304 SS with
Polyurethane coating for maximum resistance to abrasion.
Casing: AISI 304 SS
Mechanical Seal: Silicon carbide sealing faces, all metal components of AISI type 300 stainless steel running in protected oil chamber.
Elastomers: BUNA-N
Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening.
Motor: Air filled class F insulated design for continuous use.
Designed for Continuous Operation: Pump ratings are within the motor’s working limits and can be operated continuously without damage.
Bearings: Upper and lower heavy duty ball bearing construction.

1/2HP 115VOLT # 1DW51C0EA
1/2HP 230VOLT # 1DW51C1EA
1/2HP 230VOLT 3PHASE # 1DW51C3EA
1HP 230VOLT # 1DW51E1EA
1HP 230VOLT 3PHASE # 1DW51E3EA
1 1/2HP 230VOLT 3PHASE # 1DW51F3EA

Technical sheet (PDF)
