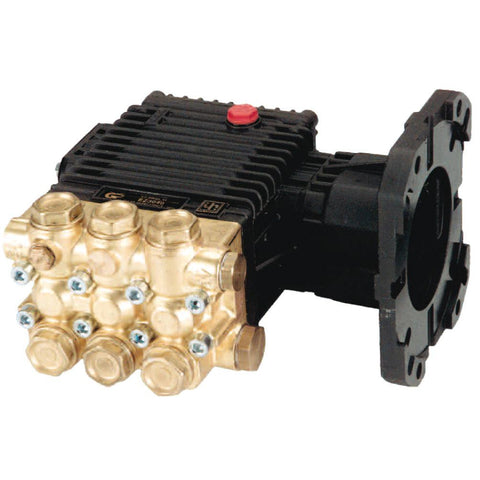

Triplex pump serie 44 EZ 3.0/4.0gpm 4000psi EZ4030G34 EZ4035G34 EZ4040

Pompe triplex serie 44 EZ 3.0/4.6gpm 2500psi EZ3030G34 EZ3035G EZ3040G EZ3045G EZ2545G - Airablo

Triplex pump serie 44 EZ 3.0/4.0gpm 4000psi EZ4030G34 EZ4035G34 EZ4040G

$1,275⁰⁰
Save $0⁰⁰

Features
• Standard SAE J609 gasoline mounting flange for up to 13 hp engines
• Forged brass manifold
• Die-cast, anodized aluminum oil-bath crankcase
• Innovative one-piece plunger design to eliminate water entering crankcase
• Premium roller bearing
• 5% reduction in crankcase load compared to standard 3,000 PSI, 15 mm pumps
• Unitized stainless steel inlet and discharge valves
• Available in “L” left-handed versions Pression d'entrée Max: 125psi

Maximum Discharge Pressure 4000 PSI
Maximum Pump Speed 3400 RPM
Maximum Inlet Pressure 125 PSI
Maximum Inlet Vacuum 3 ft. water (2.6 in. Hg)
Plunger Bore .512 in. / 13 mm
Plunger Stroke .512 in. / 13 mm .433 in. / 11 mm .374 in. / 9.5 mm
Crankcase Oil Capacity 14.0 oz.
Maximum Fluid Temperature 165° F
Inlet Port Thread 1/2-14 BSPP-F
Discharge Port Thread 3/8-19 BSPP-F
Shaft Diameter 1.0 in. / 25.4 mm
Weight 20 lbs.
Dimensions 8.8” x 9.7” x 6.5”

Technical sheet (PDF) EZ4030G34 EZ4035G34 EZ4040G

3.0GPM 4000PSI 3400RPM # WW963BC EZ4030G34
3.5GPM 4000PSI 3400RPM # WW964BC EZ4035G34
4.0GPM 4000PSI 3400RPM # WW965BC EZ4040G
